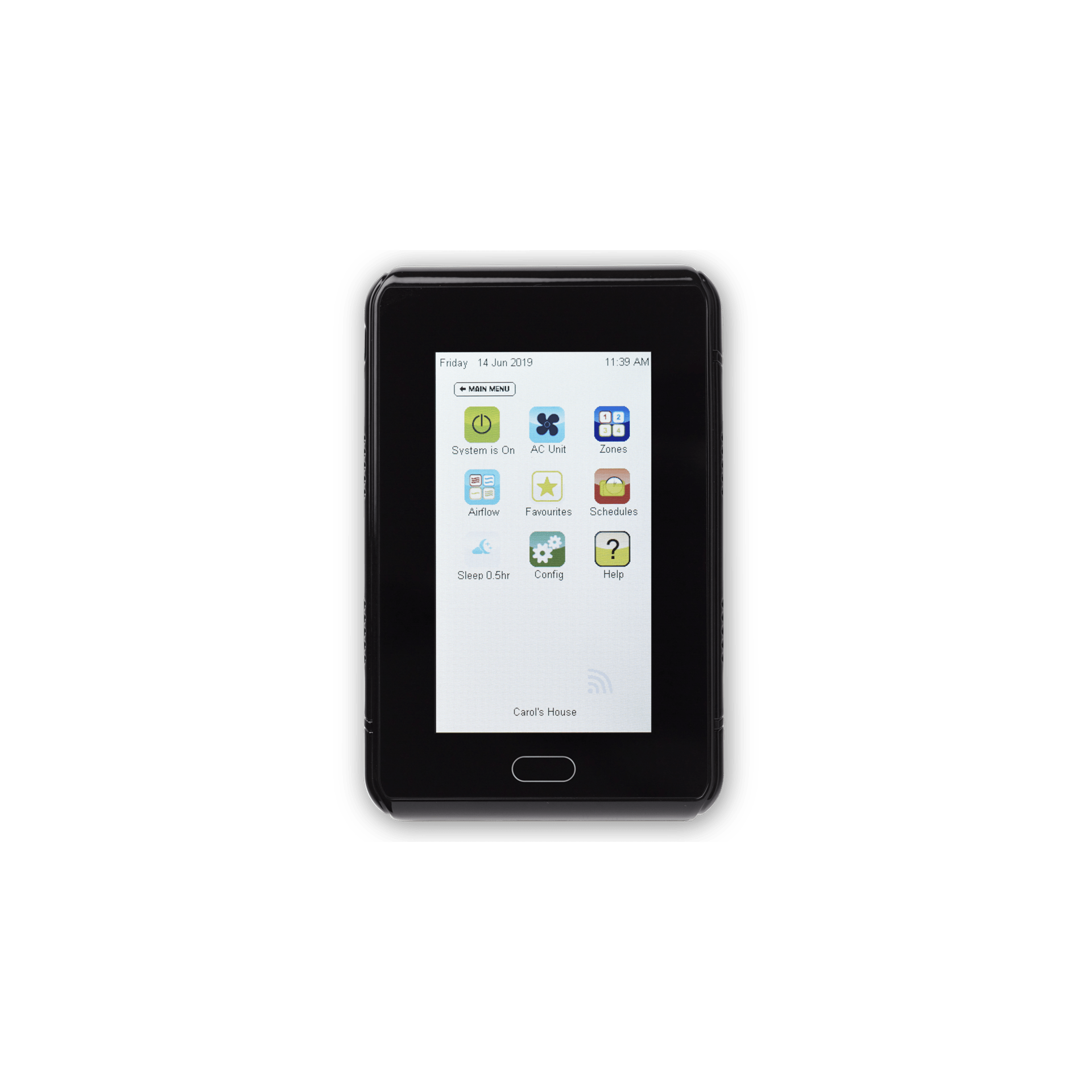

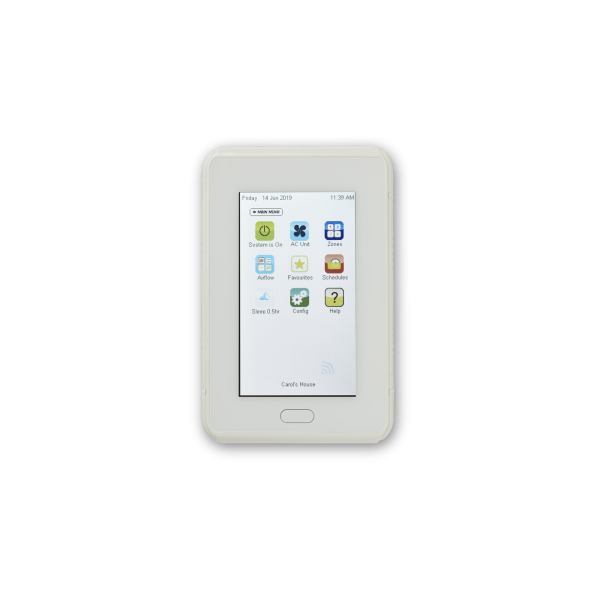

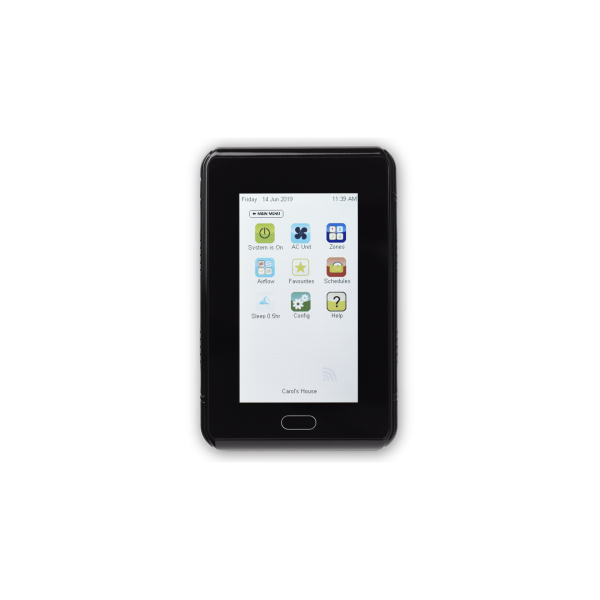

iZone Nano Controller

Description

The Nova Climate Control System empowers you to be the master of your own home.  This smart technology not only enhances your in-home comfort but significantly reduces running costs, setting a new standard in personalised climate management.

Your control, your choice

  • Precision control for up to 14 zones.
  • 10-inch screen.
  • Portrait view or Landscape view.
  • Choose from three separate temperature control modes: ‘Whole-Home Control,’ ‘Individual Zone Control,’ or ‘Your choice of something in between.’
  • Select from four different types of temperature-controlling zones.
  • Customisable user interface allowing you to pin essential zones and devices for quick access, invite family members to customise their screens, organise everything into convenient ‘rooms’ and many more.
  • Compatible with Google and Alexa.

Your comfort, your choice

  • Option to manually adjust airflow from 0% – 100%.
  • Fully balanced airflow for individual zones to ensure maximum comfort.
  • Auto mode with an adjustable deadband option.
  • Seamlessly integrate smart home devices without system upgrades.

Your savings, your choice

  • A range of incomparable Energy saving features:
  • Locking temperature setpoints.
  • Enabling Scrooge mode.
  • Utilising inducts energy.
  • Integrating fresh air intake systems.
  • Auto system off options.
  • Auto fan speed.
  • Integrating iZone power monitoring.
  • Preselect one of the three constant controlling options before installation.

Your assurance, our guarantee

  • Remote-control support service for added peace of mind.
  • Embedded secure smart hub for secure remote access.
  • 5 Year manufacturer warranty.

Specifications

Nova Wall Controller

Model number:  CCASLW

User interface:  10” Colour touch screen (1920 x 1200 pixels)

Size:  240mm L x 25mm W x 165mm H

Weight:  455g (includes wall bracket and trim)

Communication:  WiFi 802.11

Power:  12VDC (1.5A) with 2.1mm DC power line connector

Colours:  White

Screen orientation:  Landscape/ Portrait

Environmental sensors:  None

Operating system: Android system

Required component:  iZone Smart Hub

Includes:  Built-in camera

Not included: Built-in temperature sensor, air quality sensor and USB port

Brochures

iZone Smart Home Solutions

Manuals

171110 iZone 400-435 Installation & User Manual Nov 2017

Warranty

Warranty Policy
Warranty Registration Form
