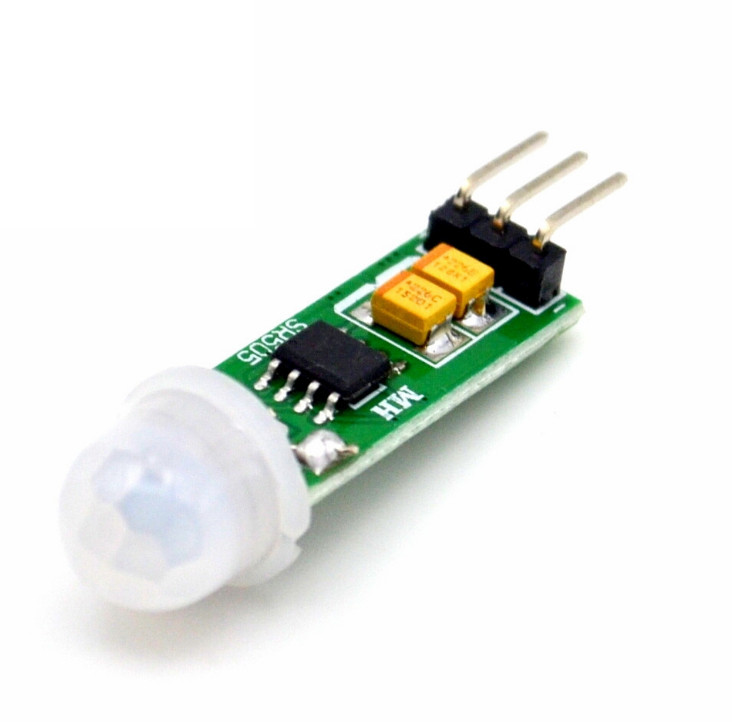

HC-SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module Sensor
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| UPC | Does not apply |
| MPN | Does Not Apply |
| Brand | Unbranded |
| Type | Induction module |
| Color | green |
| Size | 23.5*10.2MM |
Technical parameters:Operating Voltage Range: DC4.5-20VStatic current: <60uAOutput level: High 3.3V / Low 0VTrigger: repeatable trigger (default)Delay time: Default 8S + -30% (can be customized range of a few tenths - tens of minutes)PCB Dimensions: 10 * 23mmInduction angle: <100 degree cone angleInduction distance: 3 metersWorking temperature: -20 - +80 degreesSensor Lens Dimensions: Diameter: 10mm (default)Quantity: 1 pieceFeatures:Automatic induction: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay lOW (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).Wide operating voltage range: the default operating voltage DC4.5V-20V.Micropower: quiescent current <50 microamps, especially for battery-powered automatic control products.Output high signal: easy docking and all kinds of circuits.Applications:Body induction lampsBody sensors toysSecurity ProductsIndustrial automation and controlAuto-sensing of electrical equipmentBattery-powered automatic control
