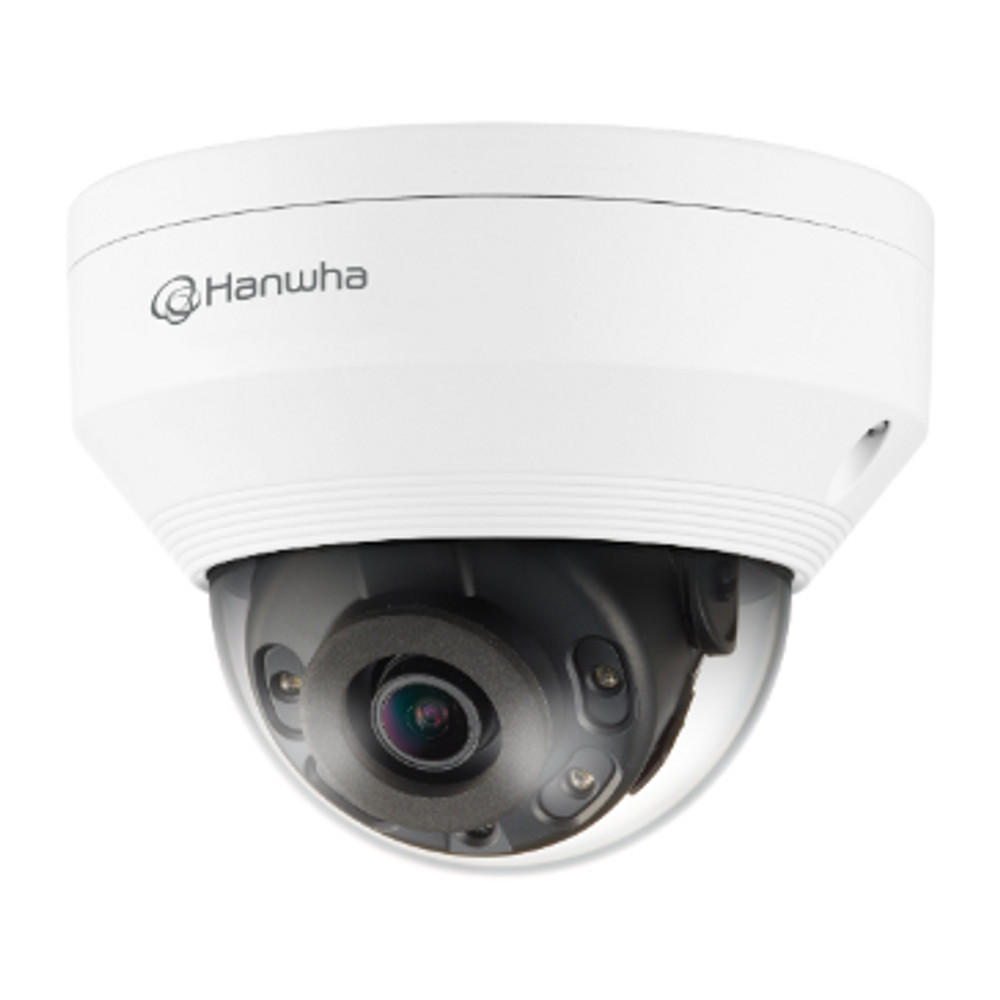

Hanwha Techwin 5MP with 2.8mm Lens Outdoor Vandal Resistant Dome Network Camera,
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | SAMSUNG HANWHA VISION |
| Type | Network Camera |
| Model | QNV-8010R |
| MPN | QNV-8010R |
Hanwha Techwin QNV-8010R OverviewMonitor an outdoor area with the white QNV-8010R 5MP Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The camera's 2.8mm fixed lens delivers a 104.7° horizontal field of view. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated aluminum enclosure for safe outdoor use in areas at risk of vandalism.IR cut filter for day and night functionalityH.265, H.264, and MJPEG video codecsWiseStream II supportTriple streamingUnicast and multicast streamingUp to six users in unicast modeCBR and VBRElectronic shutterCamera pivots horizontally from 0 to 350° and vertically from 0 to 67°0 to 355° rotationLens distortion correctionBacklight compensation120 dB wide dynamic rangeDigital noise reduction (SSNR)Gain controlWhite balance modes include ATW, AWC, manual, indoor, and outdoorPrivacy masking for up to six rectangular zonesFlip, mirror, and hallway view (90/270°) supportAnalytics include defocus detection, directional/virtual line detection, motion detection (4 polygonal zones), enter/exit, and tampering100M Ethernet portCVBS video outputAlarm input and outputAlarm triggers include analytics, network disconnect, and alarm inputAlarm events include file upload via FTP and email, notification via email, microSD card or NAS recording at event triggers, alarm output, and handoverCompatible with Windows 7, 8.1 & 10, Mac OS X 10.10 to 10.14, Chrome, Microsoft Edge, Internet Explorer 11, Firefox (Windows 64-bit only), and Safari (Mac OS X only)FCC, cUL, CE, and EAC certified5 Megapixel resolutionBuilt-in 2.8mm fixed lens30fps@all resolutions (H.265/H.264)H.265, H.264, MJPEG codec supported, Multiple streamingDay & Night (ICR), WDR (120dB)Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual linemicro SD (128GB) memory slot, PoEIR viewable length 20m, IP66, IK10Hallway view supportAnalog video out for easy installationLDC support (Lens Distortion Correction)Wisenet Q network outdoor vandal dome camera, 5MP @ 30fps, 2.8mm fixed focal lens (104°), triple codec H.265/H.264/MJPEG with Wisestream II, 120dB WDR, IR LEDs range 65', defocus detection, hallway View, SD card, video analytics, CVBS, open platform, IP66, IK10, PoE, white colorKey Features2592 x 1944 Resolution at 30 fpsIR LEDs for Night Vision up to 65'2.8mm Fixed Lens104.7° Horizontal Field of ViewSupports microSD Cards up to 128GBRJ45 Ethernet with PoE TechnologyComplies with ONVIF Profiles G, S & TIP66 Rated for Outdoor UseIK10-Rated Vandal Resistance Hanwha Techwin QNV-8010R SpecsCameraSensor5 MP 1/2.8" CMOSFocal Length2.8mmMaximum Aperturef/2Lens Field of ViewHorizontal: 104.7°Vertical: 76.5°Diagonal: 136°IR Cut FilterMechanicalDay/NightYesMinimum IlluminationColor: 0.15 LuxB&W: 0 LuxShutter Speed1/12,000 to 1/5 SecondsCamera Angle AdjustmentHorizontal: 0 to 350°Vertical: 0 to 67°VideoStreaming Resolution2592 x 1944 at 30 fpsSupported Video CompressionH.264, H.265, MJPEGMulti-View StreamingYes, 3 StreamsBuilt-In MicNoNetworkingSecurityDigest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access LogSupported ProtocolsARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnPSystem IntegrationApplication Programming Interface (API)ONVIF Profiles G, S & T, SUNAPI (HTTP API), Wisenet Open PlatformAnalyticsDefocus Detection, Directional/Virtual Line Detection, Motion Detection (4 Polygonal Zones), Enter/Exit, TamperingEvent TriggerYesEvent ActionRecording, Notification, AlarmData StreamingYesSystem RequirementsWindows OS SupportWindows 7, 8.1, 10Mac OS SupportmacOS 10.14, macOS 10.13, macOS 10.12, OS X 10.11, OS X 10.10EnvironmentalOperating Temperature-22 to 131°F / -30 to 55°CStorage Temperature-22 to 140°F / -30 to 60°COperating Humidity0 to 90%IP RatingIP66IK RatingIK10GeneralMemory512 MB RAM / 256 MB FlashMedia/Memory Card SlotSingle Slot: microSD/microSDHC/microSDXC [128 GB Maximum]Pan/TiltNoneAlarm I/O1 / 1I/O Connections1 x RJ451 x BNCIR Range65.6' / 20 mSupported LanguagesCzechDutchEnglishFrenchGermanItalianJapaneseKoreanPolishPortugueseRussianSimplified ChineseSpanishSwedishTurkishInternal StorageNoneExternal Storage OptionsNASPower SourcePoE 802.3af (15 W)Power Consumption5.8 WMaterial of ConstructionAluminumDimensionsø: 4.7 x H: 3.6" / ø: 120.3 x H: 91.7 mmWeight1.1 lb / 510 gPackaging InfoPackage Weight1.89 lbBox Dimensions (LxWxH)6.3 x 6.3 x 5.2"
